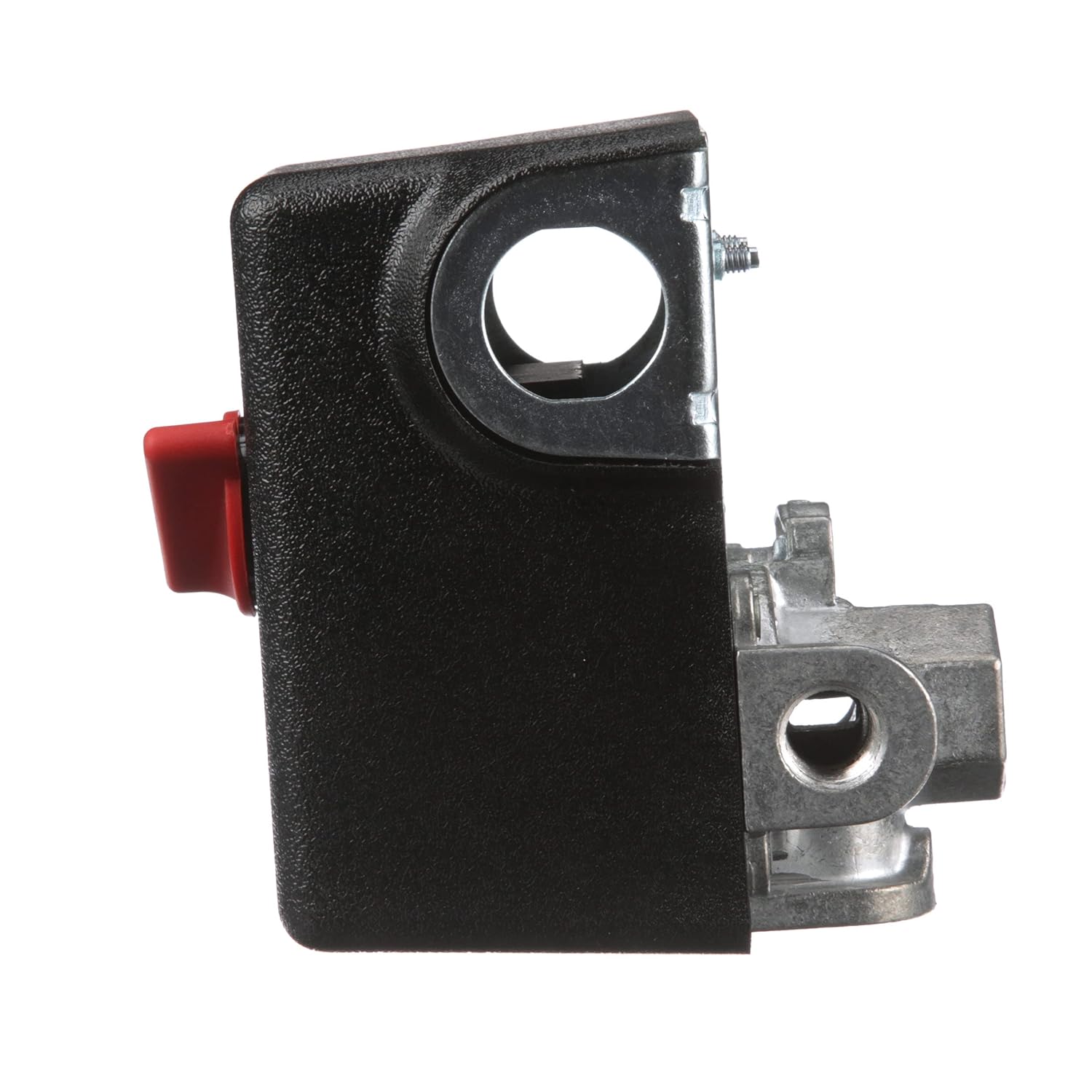

Condor 11NC2X 105-135 PSI 4 Port Air Compressor Pressure Switch
Product details
| Management number | 210904898 | Release Date | 2026/04/04 | List Price | $13.66 | Model Number | 210904898 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This pressure switch is designed for use with air compressors. It features an actuation-type diaphragm. Item: Pressure Switch Pressure Switch Application: Air Compressor Manual Switch Action: Auto/Off Pressure Switch Port Type: (4) Port, 1/4" FNPT Pressure Switch Factory On/Off Setting: 105/135 psi Pressure Switch Unloader: No Pressure Switch Differential: 25 to 65 psi Pressure Switch Range: 25 to 160 psi Pressure Switch Electrical Contact Form: DPST Pressure Switch Action: StandardNEMA Rating: 1 Series: MDR11 HP @ 1 Phase - 120V: 2 HP @ 1 Phase - 240V: 3 Temp. Range: -22 Degrees to 257 Degrees F Standards: UL Listed, CSA Certified Special Features: 4 kW/4 HP Switching Capacity, 11 Bar/160 psi Maximum Cut-Out Pressure AC Contact Rating: 26A @ 240V
- Brand: Condor
- Model: MDR-11
- Country Of Manufacture: United States
| UPC | 696333635028 |
|---|---|
| Color | Regular |
| Wattage | 5380 watts |
| Terminal | Dpst |
| Brand Name | CONDOR |
| Unit Count | 1.0 Count |
| Switch Type | Pressure Switch |
| Circuit Type | 4-way |
| Contact Type | Normally Open |
| Manufacturer | CAI - CONDOR USA, INC |
| Actuator Type | Diaphragm |
| Material Type | Copper |
| Mounting Type | Panel Mount |
| Connector Type | Plug In |
| Control Method | App |
| Current Rating | 26 Amps |
| Operation Mode | ON-OFF |
| Controller Type | Push Button |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 240 Volts |
| Specification Met | CSA, UL |
| Number of Positions | 4 |
| Connectivity Protocol | X-10 |
| Upper Temperature Rating | 257 Degrees Fahrenheit |
| International Protection Rating | IP00 |
